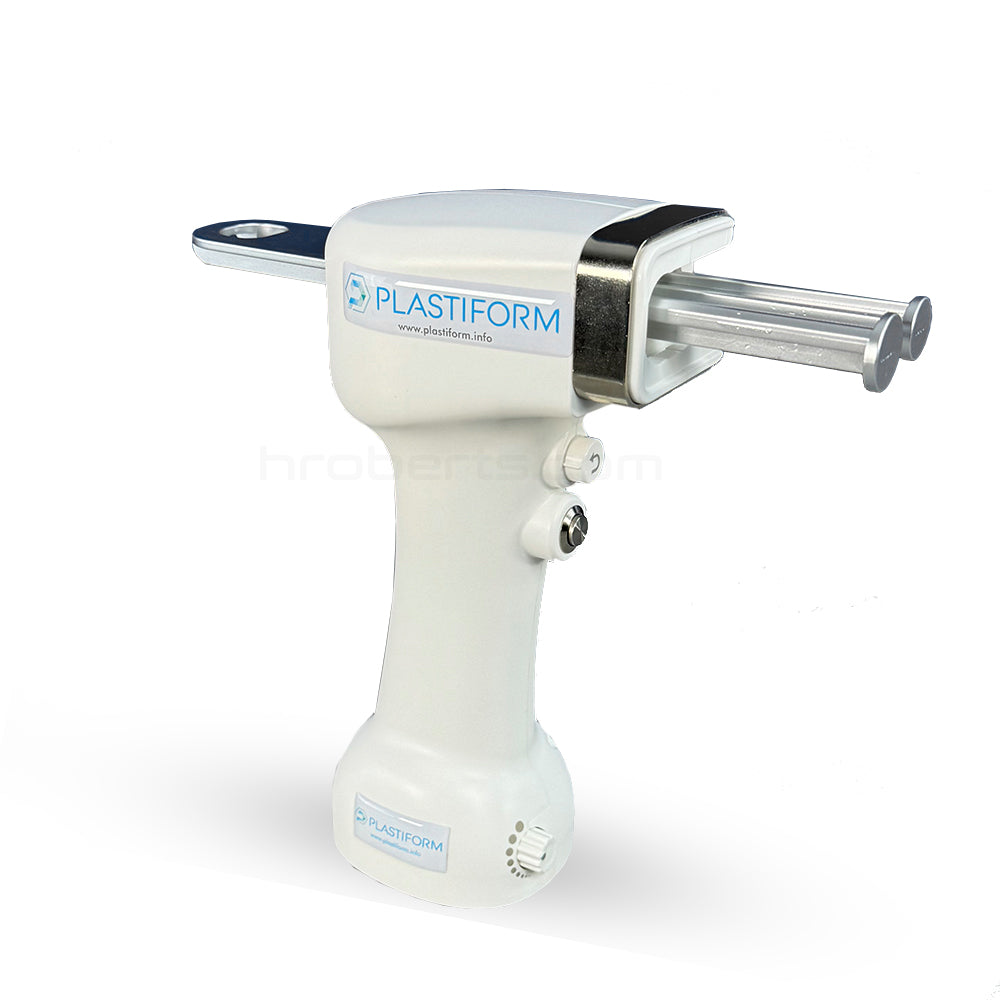

Battery Powered Application Gun

The DB-50 gun is lightweight and robust. This battery-powered application of Plastiform products is very easy to use, with a high control over the flow and ensure a precise and constant 1:1 mixing ratio, which is crucial for proper polymerization after injection.

Battery-powered application lets you manage the flow to prevent air bubbles. To achieve the correct mixing ratio, you must use the nozzles provided with the cartridge.

The battery can last around 8 hours (depending on the product’s resistance and usage, this indication might vary).

This accessory has long-term utility and is recommended to apply Plastiform products in 50ml cartridges. It is particularly useful for operators that take more than 10 impressions a day to prevent forearm discomfort.

The DB-50 should be used for any application involving a 50ml cartridge, except when you need some kind of automatic dispensing system.

To fit a cartridge to the gun :

1. Pull the metal tab outwards as far as it will go,
2. Position the cartridge by sliding it from the side,
3. Secure it by pushing the tab inwards,
4. Attach the nozzle to the cartridge and add a tip if necessary,
5. Adjust the speed with the button at the bottom of the gun,

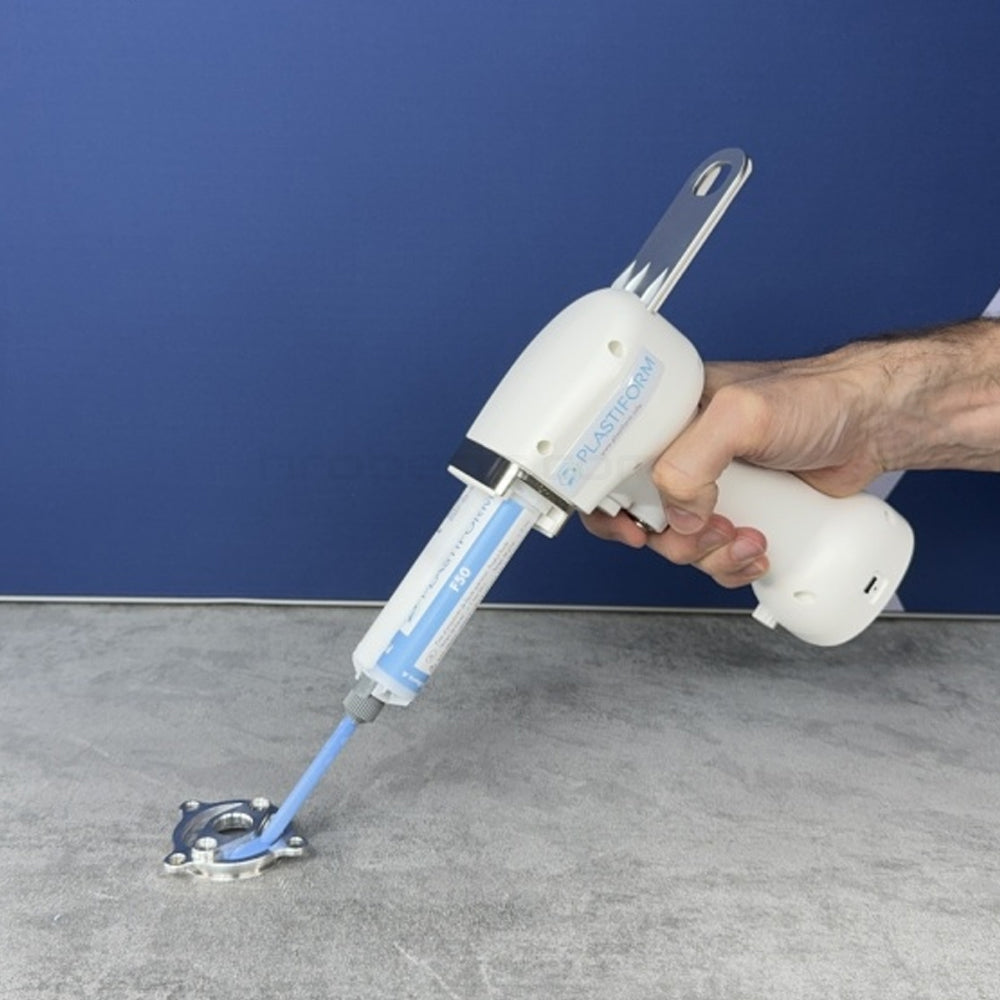

6. Squeeze the trigger to mix the two components,
7. Take your impression after verifying the mixture is mixed properly.

Before using the Plastiform, don’t forget to clean the part with DN1 degreaser.
